Control system flexE12E


With the modular design of hardware and software and the configurable sensor interface, these units can be used to control various processes (screwdriving, press-in operations, friction measurement, position measurement, etc.).

Moduls

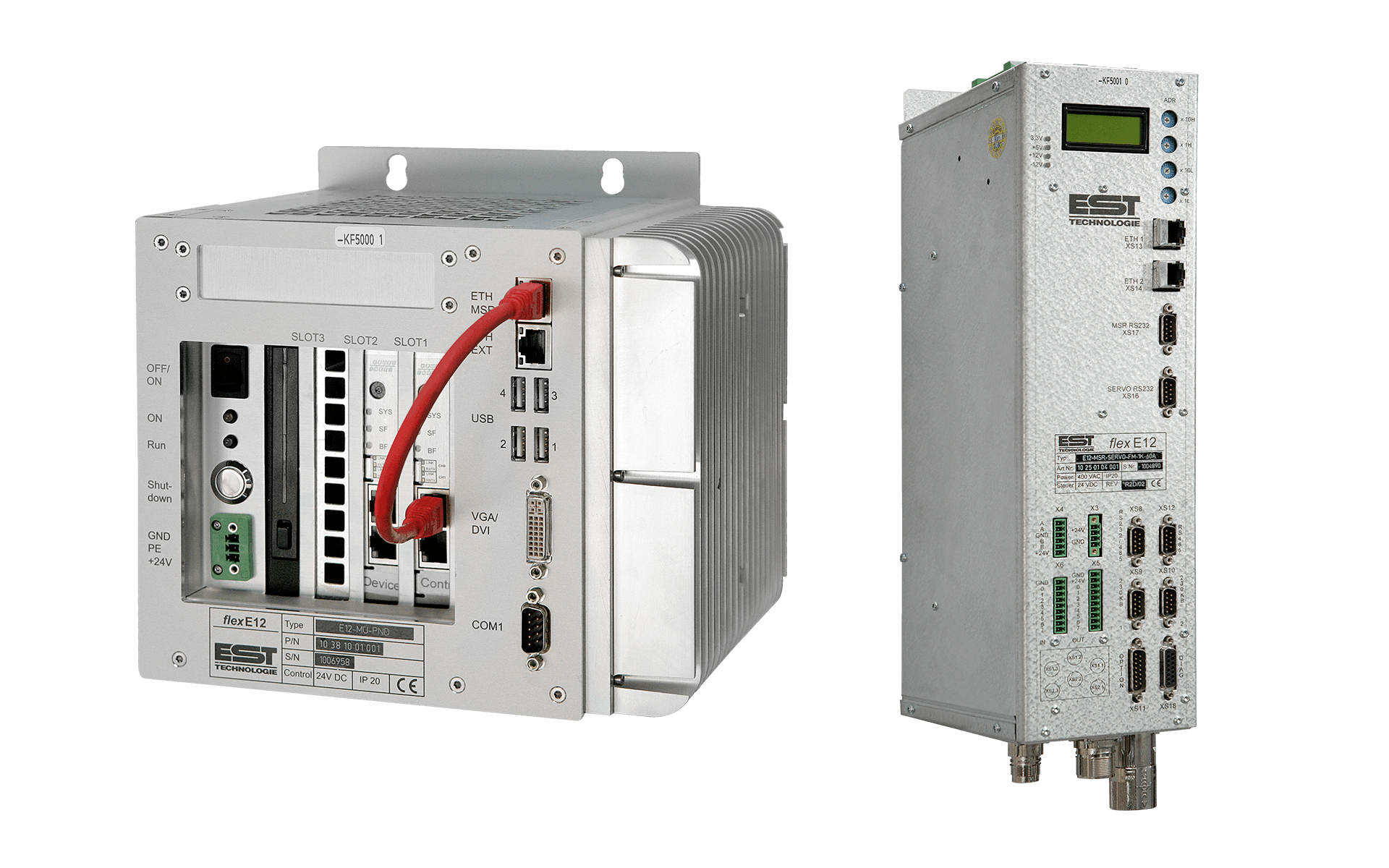

flexE12 master unit
  • Designed by EST
  • Windows 10 operating system
  • Ethernet interface
  • PROFINET device interface
  • PROFINET master interface
  • 4 USB interfaces
  • SSD for data storage
flexE12 MSR/servo unit
  • Designed by EST
  • Multilayer
  • SMD technology
  • Highly integrated system modules
  • Integrated connectors
  • Choice of one- or two-channel functionality in a compact design
  • Master functionality via multiple MSR/servo units with standard IPC
  • Suitable for electrical cabinet installation
  • On-board power supply units
  • Integrated servo amplifier
  • LCD matrix display
  • PROFINET interface
  • Integrated PROFINET switch
  • Digital and analog inputs/outputs and four serial interfaces
  • Fabricated using the most advanced production technologies
